Category Archives: FEATURED LISTINGS

FE2047

FE2047

York 5 Ton Flake Ice Machine

  • Price: $2,500 USD or best offer
  • Location: Ohio

 Details are deemed to be correct but are not guaranteed and should be independently verified.

Please contact us for further information   sms@scrutonmarine.com
Scruton Marine Inc.    Phone 519-583-1636

Return to Listings

W2377

W2377

2009 21′ x 8′ Steel Work Boat w/Trailer

    • Price: $27,500 USD
    • 2.5′ draft
    • Powered by Evinrude Etec 300 (2010), Model DPYSI, 15 hours on motor
    • 40 gallon fuel capacity
    • Lowrance Chart Plotter, Hydraulic steering
    • Flares, life jackets, fire extinguisher
    • Bilge pump
    • Comes with tandem axle trailer
    • Very good condition
    • Located in Ohio

 Details are deemed to be correct but are not guaranteed and should be independently verified.

Please contact us for further information    sms@scrutonmarine.com
Scruton Marine Inc.    Phone 519-583-1636
Return to index

D2120

File No. D2120

Mudcat MC915 Auger Dredge

Construction material – Steel

  • Length : 38’ 11″
  • Width : 9′ 0″
  • Height : O.A.8’8′
  • Weight : 21,000 lbs. & Dry
  • Draft : 21″
  • Floating Clearance : 6’9″
  • Fuel Capacity : 360 gallons
  • Pontoons : Two 36″ x 32″ x 330″

10 Gauge H.R. Steel with Internal Bulkheads and Stiffeners; formed for rigidity; polyurethane foam filled

  • Auger: Diameter 13-5/8″
  • Pitch : 11″
  • Flighting: 3/8″
  • Speed: Up to 100 RPM
  • Cutter Knives: 45 Detachable Heat-Treated Blades
  • Cutter Bars: 36 Detachable Heat-Treated Blades
  • Auger Torque; 16,500 in. lbs. Rotates to Cut Slope up to 45 degrees
  • 19″ x 9′ Hydraulically Adjustable Cut 9′ wide x 18″ maximum depth
  • Operating: Depth-15′ maximum
  • Detroit Diesel: 6-71 RC, 228 BHP @ 2100 RPM
  • Clutch—Manual: 14″ Dia. Disc & Pressure Plate
  • Reduction—Gear : Ratio 1.8/1—Drive Coupling Flex Type
  • Centrifugal Closed Impeller
  • Impeller Diameter: 19-1/2″
  • Suction Diameter: 8″
  • Discharge Diameter: 8″
  • Shaft Diameter: 2-7/8″
  • Capacity: 2000 GPM @ 1160 RPM against 180′ Head
  • Material Removal: To 120 Cu. yds./hr.
  • Capacity: 75 GPM @ 2800 RPM
  • Pressure: 80 PSI

Dual Pumps

  • Capacity Total: 30.5 GPM @ 1800 RPM
  • Reservoir : 47 Gallon
  • Circuit One:  Auger Drive
  • Circuit Two: Boom, Mud Shield and Winch

Relief Valve Setting:

  • Auger : 3000 PSI
  • Others: 1500 PSI

Treble Sheave Hydraulic Winch

  • Traverse Speed: 50 FPM Maximum Forward & Reverse
  • Average Cutting Speed: 8 to 12 FPM
  • Voltage: 12V
  • Alt. Output: 65 Ampere
  • Batteries: 12V, 205 Ampere Hour, Parallel Wired
  • Circuits: 2 Wire System Full Ground

Polyurethane finish coat on corrosion inhibitive epoxy primer

  • Standard Colors: Green and White

Located in Ontario, Canada
Price on Request

D2119

File No. D2119

 2011 Mudcat MC-910 Aluminum ENV Suction Dredge

Principal Dimensions and Characteristics

  • Custom Built in 2011
  • Length Over All: 11.62 m 38.11 feet
  • Width: 2.74 m 9 feet
  • Height Over All: 2.68 m 8.8 feet
  • Draft: 533.4 mm 21 inches
  • Floating Clearance: 1.80 m 5.9 feet
  • Fuel Capacity: 1,325 liters 350 gallons

Floatation

  • Pontoons – (2) Two: 914.4 mm x 812.8 mm x 10.06 m 36 in. x 32 in. x 33 feet
  • .25” thick marine grade aluminum formed with Internal Bulkheads and Stiffeners:

Cutter Assembly

  • Auger: Diameter: 4.15 m 13.625 feet
  • Pitch: 279.4 mm 11 inches
  • Flighting: 9.53 mm 0.375 inches
  • Speed: Up to 100 RPM
  • Cutter Knives: 45 Detachable Heat-Treated Blades
  • Cutter Bars: 36 Detachable heat-Treated Blades
  • Auger Torque: 18,000 in. lbs.
  • Rotates to Cut Slope up to 45 degrees

Mud Shield

  • Stainless steel Hydraulic Adjustable: 482.6 x 482.6 mm 19 x 19 inches

Boom

  • Stainless steel tubular steel construction extendable to 38’ with additional floatation added

Working Capacity

  • Cut (width x max. depth): 2.74 m x 457.2 mm 9 feet x 18 inches
  • Maximum Digging Depth: 3.05 m 10 feet

Main Engine

  • Make/Model: Detroit Diesel / 6-71 RC
  • Power @ 1,800 RPM 130 kW 225 hp

Drive

  • Clutch – Manual, 14 inch (355.6 mm) Diameter Disc & Pressure Plate
  • Reduction – Gear Ratio: 1.55/1 – Drive Coupling Flex Type

Pump

  • Type: Centrifugal Closed Impeller
  • Impeller Diameter: 495.3 mm 19.5 inches
  • Suction Diameter: 203.2 mm 8 inches
  • Discharge Diameter: 152.4 mm 6 inches
  • Shaft Diameter: 73.03 mm 2.875 inches
  • Capacity: 2,000 GPM @ 1,160 RPM against 180′ Head
  • Material Removal (up to): 91.75 cubic meters/hr 120 cubic Yards/hr

Service

  • Capacity: 75 GPM @ 1,800 RPM
  • Water Pump Pressure: 80 PSI
  • Hydraulic System Dual Pumps Capacity Total: 30.5 GPM @ 1,800 RPM
  • Reservoir: 214 liters 47 gallons
  • Circuit One: Auger Drive
  • Circuit Two: Boom, Mud Shield and Winch

Relief Valve Setting

  • Auger: 3,000 PSI
  • Others: 1,800 PSI

Propulsion

  • Treble Sheave Hydraulic Winch
  • Traverse Speed – 50 FPM Maximum FWD & REV.
  • Average Cutting Speed – 8 to 12 FPM
  • Electrical System Voltage
  • Electrical System Voltage: 12 V
  • Alternator Output: 65 Amps
  • Batteries: 12 V, 205 Amps/hr, Parallel Wires
  • Average Cutting Speed: 8 to 12 FPM

Finish

  • Aluminum finish

Color

  • Aluminum finish

Located in Southern Ontario, Canada

Price: On Request

Details are deemed to be correct but are not guaranteed and should be independently verified

Please contact us for further information    sms@scrutonmarine.com
Scruton Marine Inc.   Phone 519-583-1636

Return to Listings

W2390

W2390

1982/2008 37′ x 11′ Work Boat/Pleasure Trawler

    • Price: $35,000 CDN
    • Draft 3.5′
    • 3/16″ Steel formed hull (imitation lapstrake appearance),  aluminum superstructure
    • Open stern deck space 10′ x 8.5′
    • Powered by John Deere 466 TD, 250 hp, 5000 hours
    • Cruises at 9.6 knots
    • Twin Disc 509 2.75:1
    • Trolling Gear 5:1
    • Prop is 30 x 28, 2″ shaft
    • Fuel capacity 300 gal, Consumption 3 gph @ 1500 rpm
    • 6 kw generator powered by 3 cyl Perkins
    • Electronics: 2 radios, radar, depth sounder, Loran C, compass
    • Auto pilot by ComNav
    • Hydraulic steering
    • 12V anchor winch
    • Bus heater
    • Fresh water capacity 100 gal
    • Holding tank capacity 50 gal
    • 3 Bilge pumps: 2 – 12V, 1 – manual
    • Accommodations – Forward v-berth, Head with shower and sink, 120 V stove (or alcohol), galley sink
    • 12 V solar battery charger
    • 110 V hot water tank with heat also from motor
    • Propane BBQ, Swim Platform
    • Steel davit with hand winch
    • Overall good condition
    • Weight 18,000 lbs
    • Last survey 2019
    • Location: Southern Ontario

Details are deemed to be correct but are not guaranteed and should be independently verified.

Please contact us for further information    sms@scrutonmarine.com
Scruton Marine Inc.    Phone 519-583-1636

B2347

 B2347

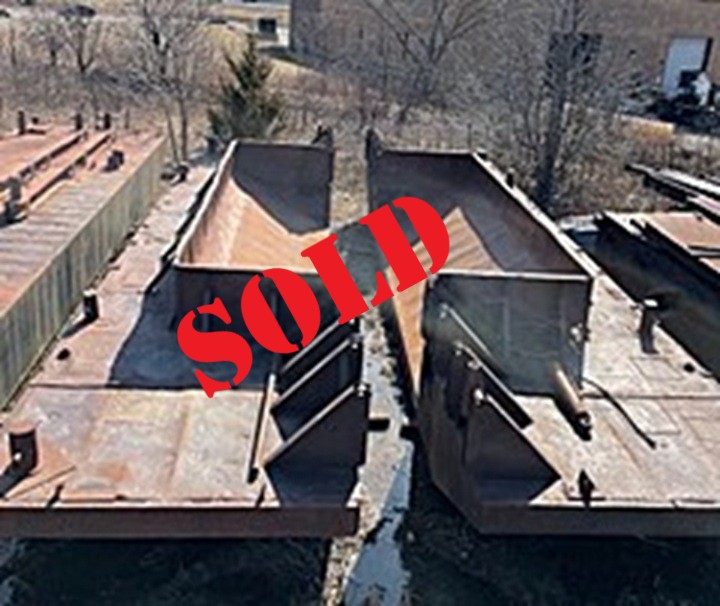

2018 (6) 8′ x 20′ x 4′ Sectional Barges

 Price: $26,000 CDN each

  • Never used
  • Shugart style
  • Capacity 10-12 tons each
  • 2 spudwells
  • 1/4″ material
  • Location: Ontario

Details are deemed to be correct but are not guaranteed and should be independently verified.

Please contact us for further information    sms@scrutonmarine.com
Scruton Marine Inc.   Phone 519-583-1636
Return to index

FV2156

FV2156

1945/1986  65′ x 20′ x 5′ Great Lakes Commercial Fishing Vessel

Price: $90,000 CDN

  • Gross tonnage – 70.74 tons
  • Net Tonnage – 57.50 tons
  • Last dry docked Spring 2016
  • Powered by Detroit 6-71
  • 3:1 Allison Transmission
  • Hydraulic steering
  • Westerbeke generator
  • 16′ aluminum life boat
  • Modine deck furnace
  • 30″ Crossley net lifter
  • Electrical equipment includes –
  • VHF, radar, autopilot
  • Located in Port Dover, Ontario

Details are deemed to be correct but are not guaranteed and should be individually verified

Please contact us for further information  sms@scrutonmarine.com
Scruton Marine Inc.    Phone 519-583-1636

Return to Listings
