PV2260

PV2260

1918 120′ x 26′  Historic Steel  Vessel – So Many Possibilities!

Asking $80,000 CDN – Owner Will Entertain Offers
The owner of this classic beauty has cared for her lovingly and he’s ready to pass the torch to a new owner.

Most recently the vessel’s been used as a dockside venue, but there are so many possibilities for this ship of limitless character.

Last Survey March 2023

Built in Port Arthur, Ontario
Molded depth 13.5′, draft 6′ bow, 9′ stern
Gross Tonnage: 249, Net 168
Shell Plating Thickness: 9/16″ bow, 3/8″stern
Headroom: Wheelhouse 80″ , Cabin 82″, Galley 90″, Engine Room 118″
Cruising Speed 6 knots
Powered by 2 Detroit 6-71
Transmission is Tonan with 3:1 ratio
Generators: Main – GM 2-71, 20kw, Backup Bedford 4 cyl, 20kw
Shaft size: 3 1/2″
Propellers (2): diameter 39.37″, pitch29.9″, steel, 3 blade, RH and LH
Electronics: Radio (3), Radar, compass
Steering: Hydraulic
Safety Equipment:
9 Buoyant Apparatus
1 life boat
7 fire extinguishers
4 fire hose stations, 3 pumps
Winches: 220v electric for windlass, hand powered on davit for lifeboat
Bilge pumps: 2
Heating: electric space heaters
Fuel capacity: 2 fuel tanks, 766 US gallons
Fuel consumption: 28.5 litres/hour with both main engines at cruising speed of 5.5 knots and main generator operating
Fresh water capacity: 1159 US gallons
Holding tank capacity: 662 US gallons
Head: Men – 1 head, 2 urinals; Women – 2 head; Crew – 1 head, 1 shower
Accommodations: 1 crew quarters

Additional Features:
6 watertight compartments
Electric BBQ
Large galley and dining area
Large bar
4 refrigeration units
Located in Ontario, Canada

Details are deemed to be correct but are not guaranteed and should be independently verified

 Please contact us for further information: Scruton Marine Inc.  sms@scrutonmarine.com  Phone 519-583-1636

  Return to Listings

E2770

E2770

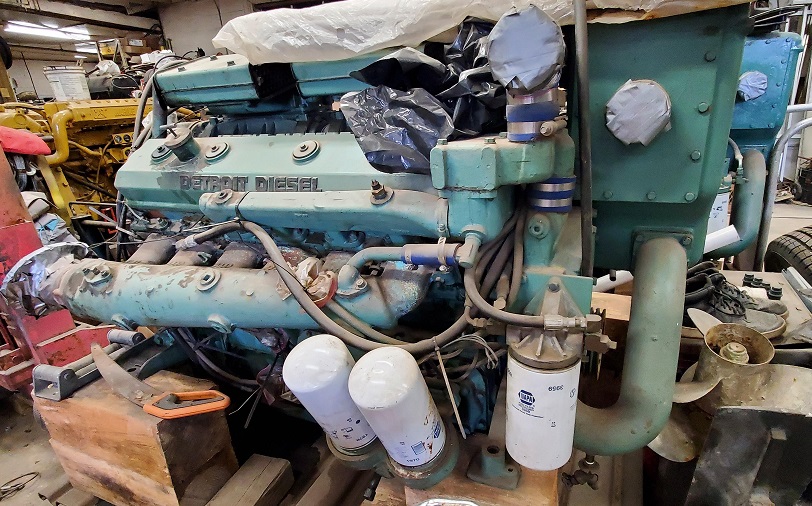

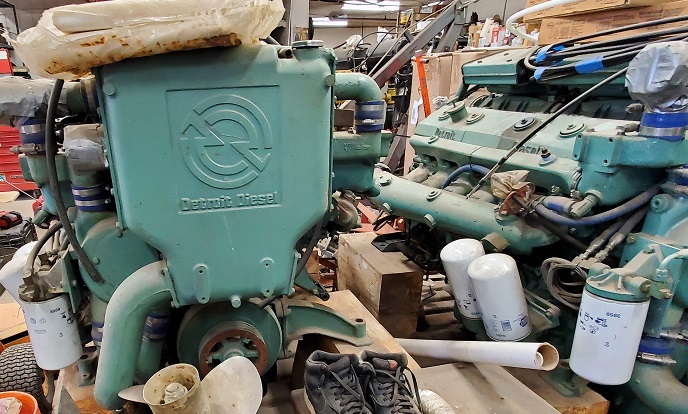

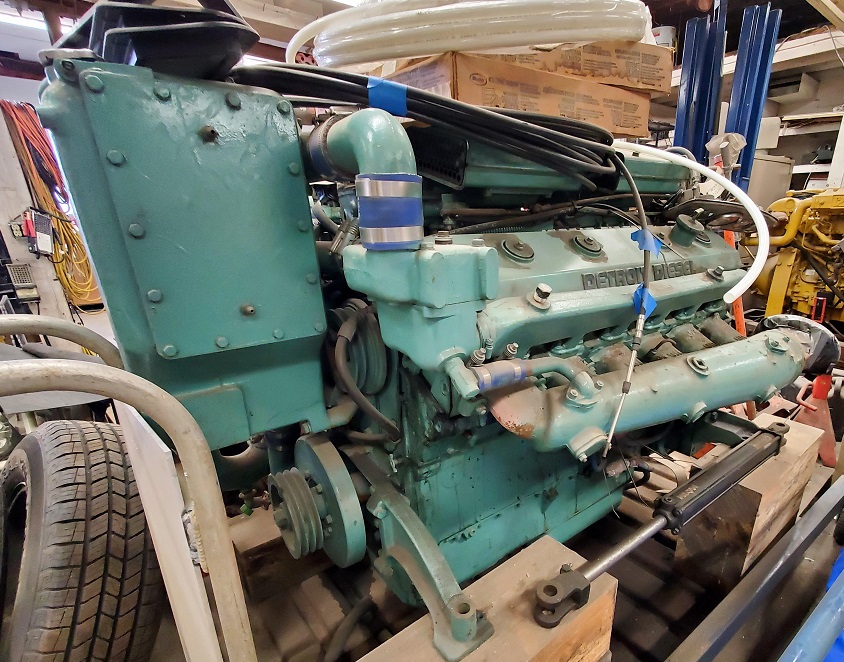

2 Detroit Diesel 12-71 Marine Diesel Engines

  • Price: $20,000 USD for the pair
  • Good running take outs ready for your latest re-powering job!
  • Keel cooled
  • Fleet maintained in a state run ferry
  • Located in:  New York State

Details are deemed to be correct but are not guaranteed and should be independently verified. .

Please contact us for further information   sms@scrutonmarine.com
Scruton Marine Inc.   Phone 519-583-1636

Return to Listings

E2771

E2771

2 Detroit Diesel 4-71 Marine Diesel Engines w/2:1 Gears

  • Price: $2,500 USD EACH
  • Heat exchanged
  • 2:1 Allison gears
  • Low hours
  • Good Runners
  • Removed from a yacht
  • Located in:  New York State

Details are deemed to be correct but are not guaranteed and should be independently verified. .

Please contact us for further information   sms@scrutonmarine.com
Scruton Marine Inc.   Phone 519-583-1636

Return to Listings

T2427

 T2427

1966 41.9′ x 12.4′ Twin Screw Model Bow Tug

  • SOLD! YOU JUST MISSED IT!
  • Draft: Approx. 5′ 6″
  • GRT: 22, NRT: 10
  • Approximate displacement:  26,000 lbs.
  • Shell plate thickness est 3/8″
  • Used in fresh water only
  • Engines:  Detroit Diesel 6-71, keel cooled, 220 hp each
  • Transmissions:  Allison model MH20R
  • Prop Shafts: 4” diameter stainless steel
  • Propellers:  48″, 4 bladed
  • Push knee fitted with two 8″ x 2″ x 5′ tall rubber fenders
  • Additional fendering: 2 port side and 3 stbd side 33″ long split tire fenders mounted on bulwarks forward, 7 port side and 6 stbd side tire fenders and a split tire rubrail around the elliptical stern
  • Two-tiered rub rail
  • Winches- port and starboard Nabrico Wintech winches w/ 5/8″ diameter galvanized steel cable
  • Generator – Yanmar Model YDG 5500 EV-E diesel powered, 5500 Watt portable generator
  • Bunk room below offers ample storage space
  • Last survey October 2022
  • Not subchapter M compliant
  • Location: New York State
  • File Ref T2427

 Details are deemed to be correct but are not guaranteed and should be independently verified.

Please contact us for further information    sms@scrutonmarine.com
Scruton Marine Inc.    Phone 519-583-1636
Return to index

T2428

 T2428

1946 45′ x 14′ Twin Screw Ex-Army Tug

  • Price: $40,000 USD
  • Draft: Approx. 5′
  • Engines:  Detroit Diesel 6-71, keel cooled, 220 hp each
  • Transmissions:  Allison 4:1
  • Propellers:  36″, 4 bladed
  • Last drydocking: Summer 2022
  • Location: New York State
  • ***More Pictures Coming Soon***
  • File Ref T2428

 Details are deemed to be correct but are not guaranteed and should be independently verified.

Please contact us for further information    sms@scrutonmarine.com
Scruton Marine Inc.    Phone 519-583-1636
Return to index

P2444

P2444

2003 57′ x 18′ x 6.5′ Steel Custom Built Trawler/Liveaboard

New Price: $500,000 CDN

Gross tonnage: 53.08 tons

Net tonnage: 39.81 tons

Shell plate thickness: 1/4″

Framing: 2″ x 3/8″

Bulkheads: 4 – 3/16″ plate

Headroom: Wheelhouse – 6’7″, Cabin – 6’5″, Engine room – 6′

Twin Detroit Diesel Series 60 engines – 430 hp ea – approx 5000 hrs

Transmissions: (2) Twin Disc 1.92:1 ratio

Steering: Hydraulic

Shaft size: 2 1/2″ Stainless Steel

Propellers: 30″ x 28″

Cruising speed: 9.6 knots @ 1500 rpm

Northern Lights 8 kw 120/240 genset

Leroy Somer 18 KW 120/240  genset

Navigation Equipment:

Uniden and Cobra VHF radios, Eagle Accunav 11 GPS

JRC 1800 Radar-Plotter, Ritchie Compass

JRC FF10 Depth Sounder

Hummingbird 997 GPS Side imaging

(2) Culst remote spot lights

Fuel capacity: 700 gal

Fuel consumption: 8 gal per hour @ 1500 rpm each engine

Fresh water capacity: 300 gal

Holding tank capacity: 100 gal

Black water capacity: 100 gal

Winch: 16000 lb hydraulic

Accommodations:

All the wood is solid cherry

Galley & salon above deck

Full size G.E. fridge

1100 watt G.E. microwave

4 burner Frigidaire stove

6000 watt energy inverter

2 bedrooms

One bedroom has double bed on bottom and single bed on top

Master bedroom has a queen size bed

2 full 3 piece baths

Furnace: Weil-McLain Gold Oil

Safety equipment: 5 fire extinguishers, 10 Orion flares

Bilge pumps: 3 – 12volt 2250 gph

Additional features:

6000lb hydraulic crane

2.5 cfm dive compressor

Located in Southern Ontario

Details are deemed to be correct but are not guaranteed and should be independently verified.

Please contact us for further information    sms@scrutonmarine.com
Scruton Marine Services    Phone 519-583-1636
